Evaluation and setup project

Bringing a 1928 Style Four back to life

1928 - Gibson - Style 4 - Five string conversion

Project at a glance

The Instrument and the Objective

Project objective

Correct the deficiencies from the previous setup and bring the banjo to a reliable, professional playing standard.

Key Objectives

Correct Neck and tension hoop misalignment.
Improve tuning stability and intonation across the entire fretboard.
Lower the action while eliminating open-string and fretted-note buzzing.
Correct the neck relief, nut-slot depth, and head tension.
Balance the tone chamber for improved clarity, sustain, projection, and note separation.
Strengthen the bass response while preserving crisp, articulate high notes.

Builder: Gibson
Model: Style 4
Year: 1928
Playing style: Traditional Scruggs, hard driving right hand, and also a great old time player.

Inspection and diagnosis

The Evaluation

Starting condition

The banjo arrived at my shop in poor playing condition. Although the neck itself was reasonably well constructed, the fretwork and overall setup were below an acceptable standard.

The evaluation revealed the following issues:

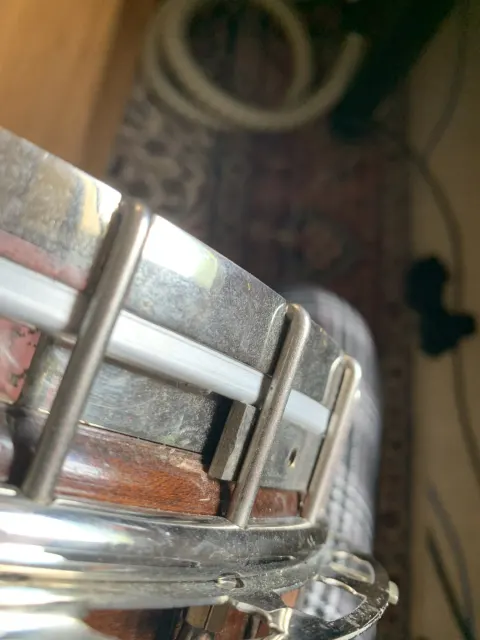

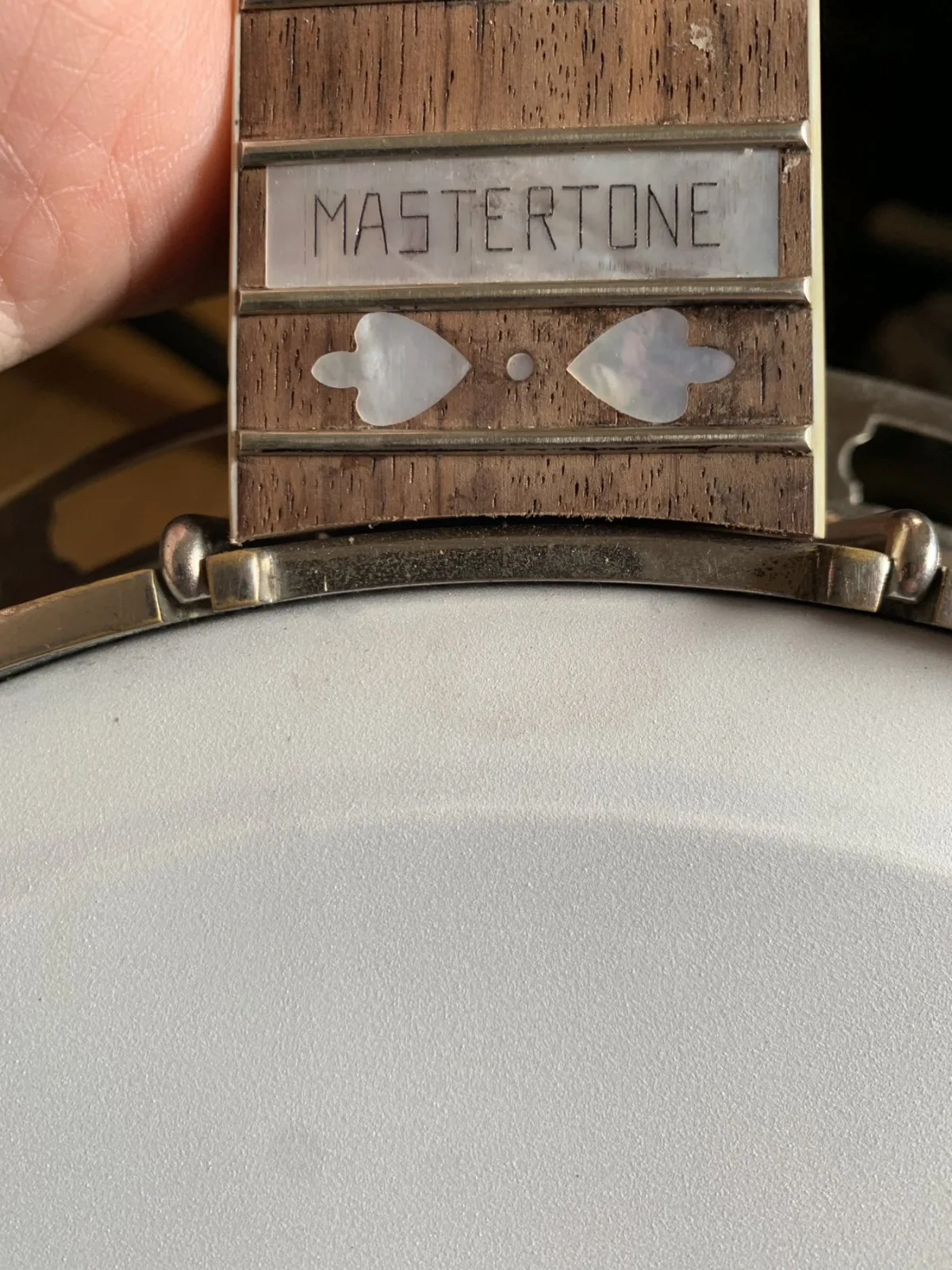

The neck and tension hoop were misaligned.

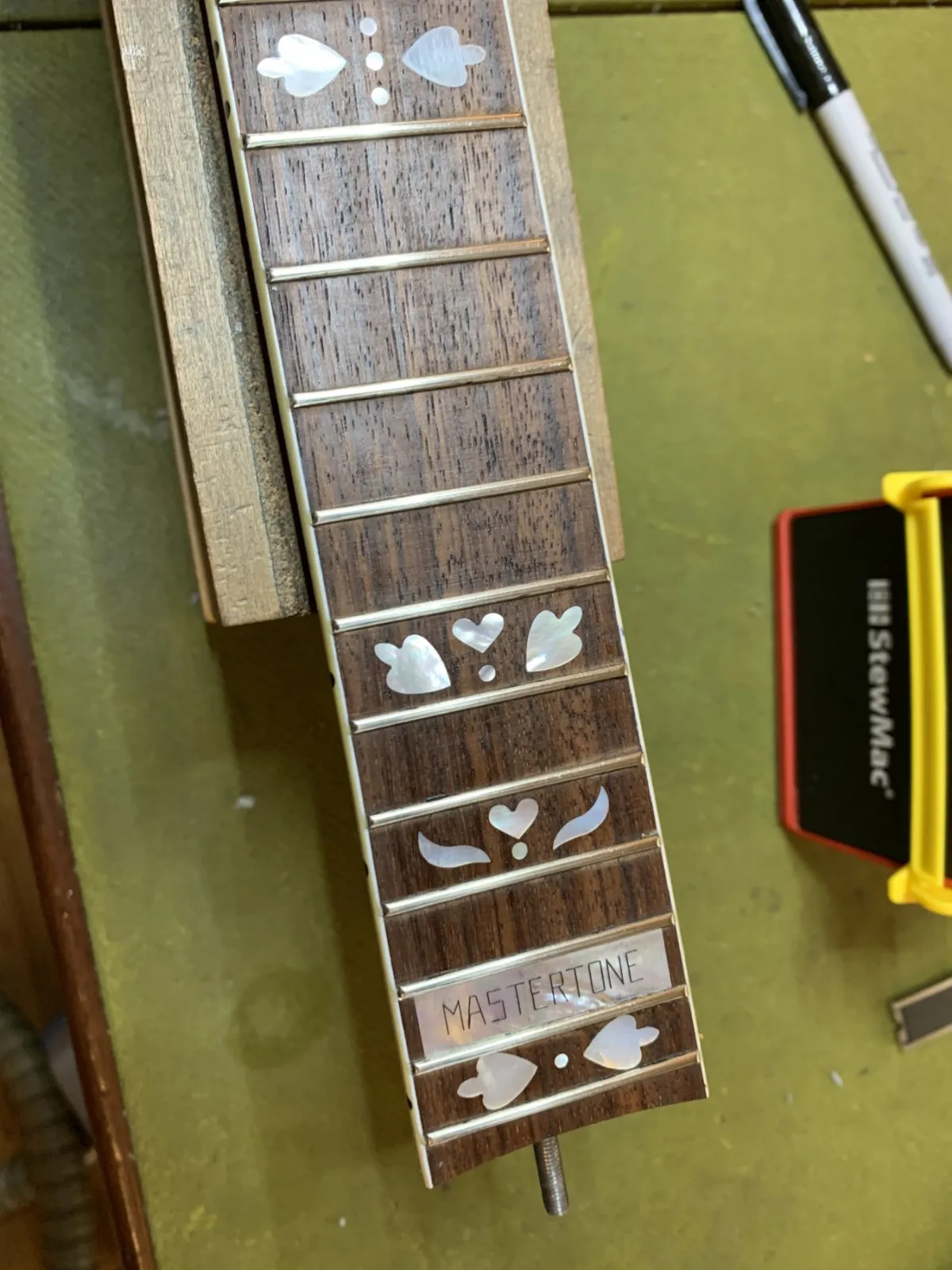

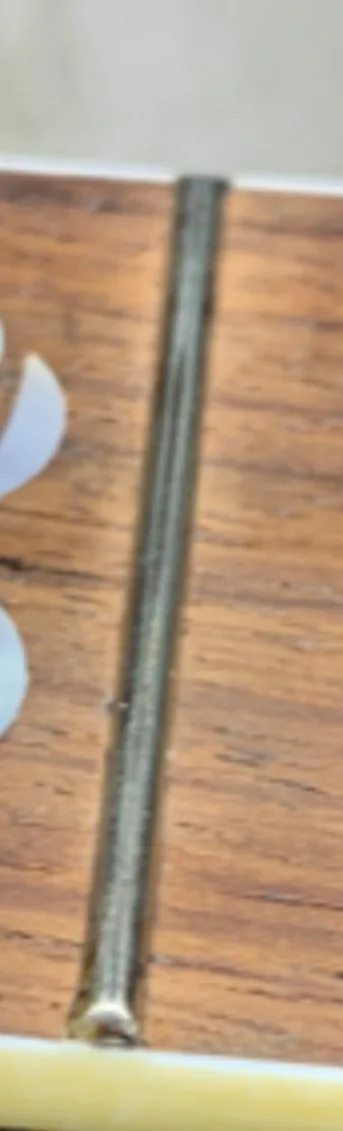

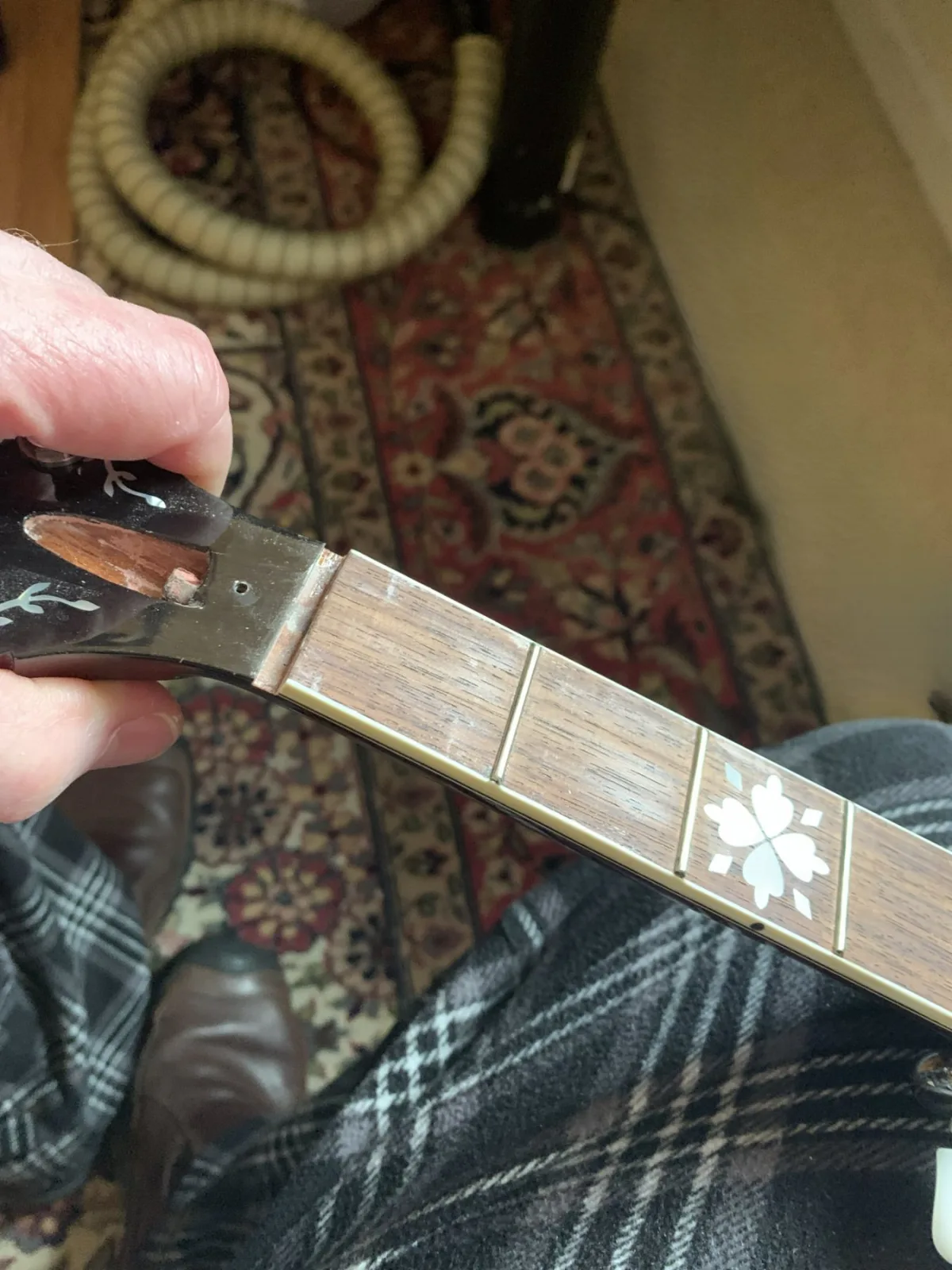

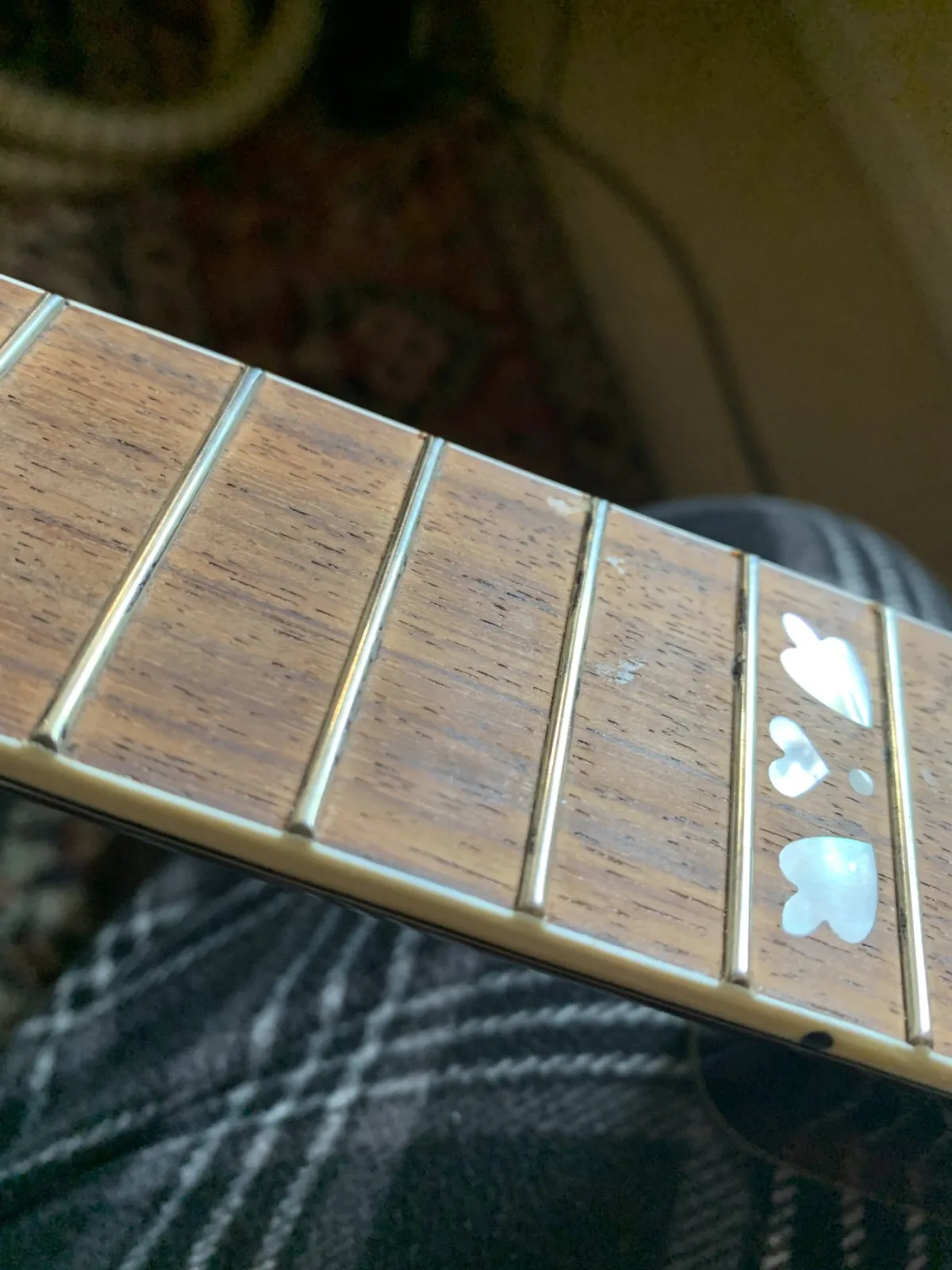

Glue residue and marker were left on the frets.
The neck had excessive relief.
The head tension was way too low, and two brackets were completely locked up by the oversized armrest backing plat.

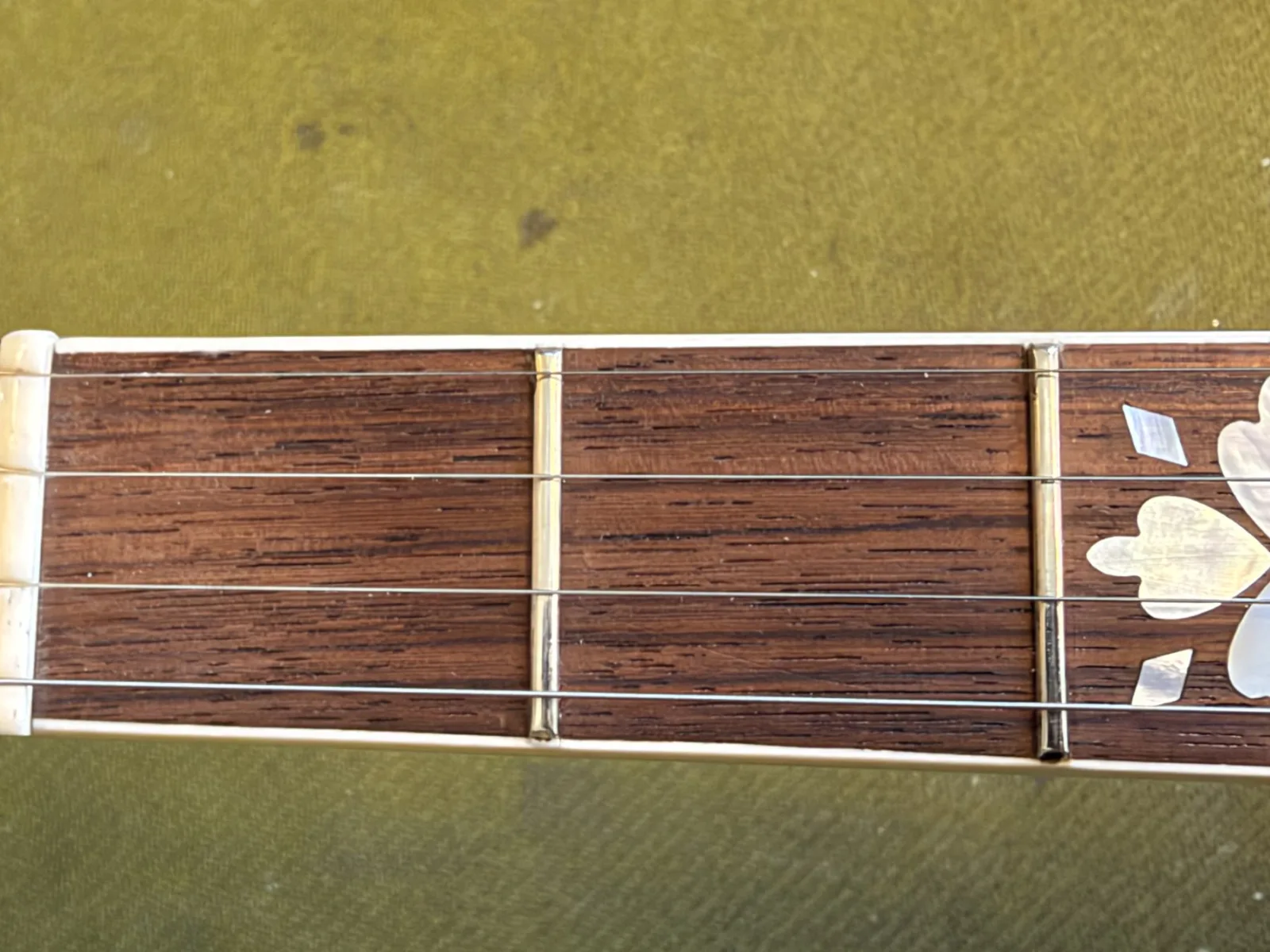

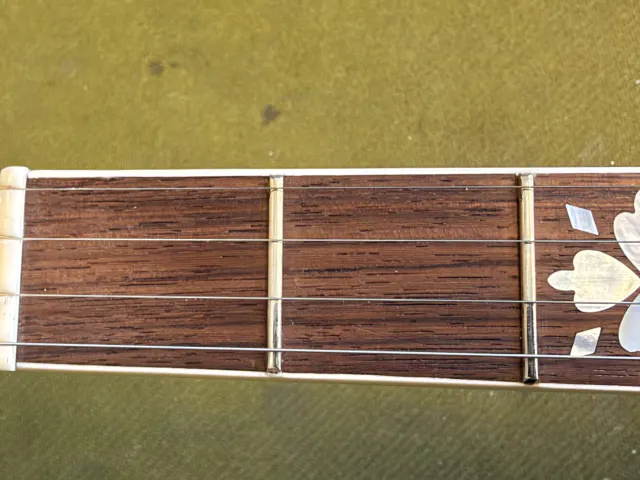

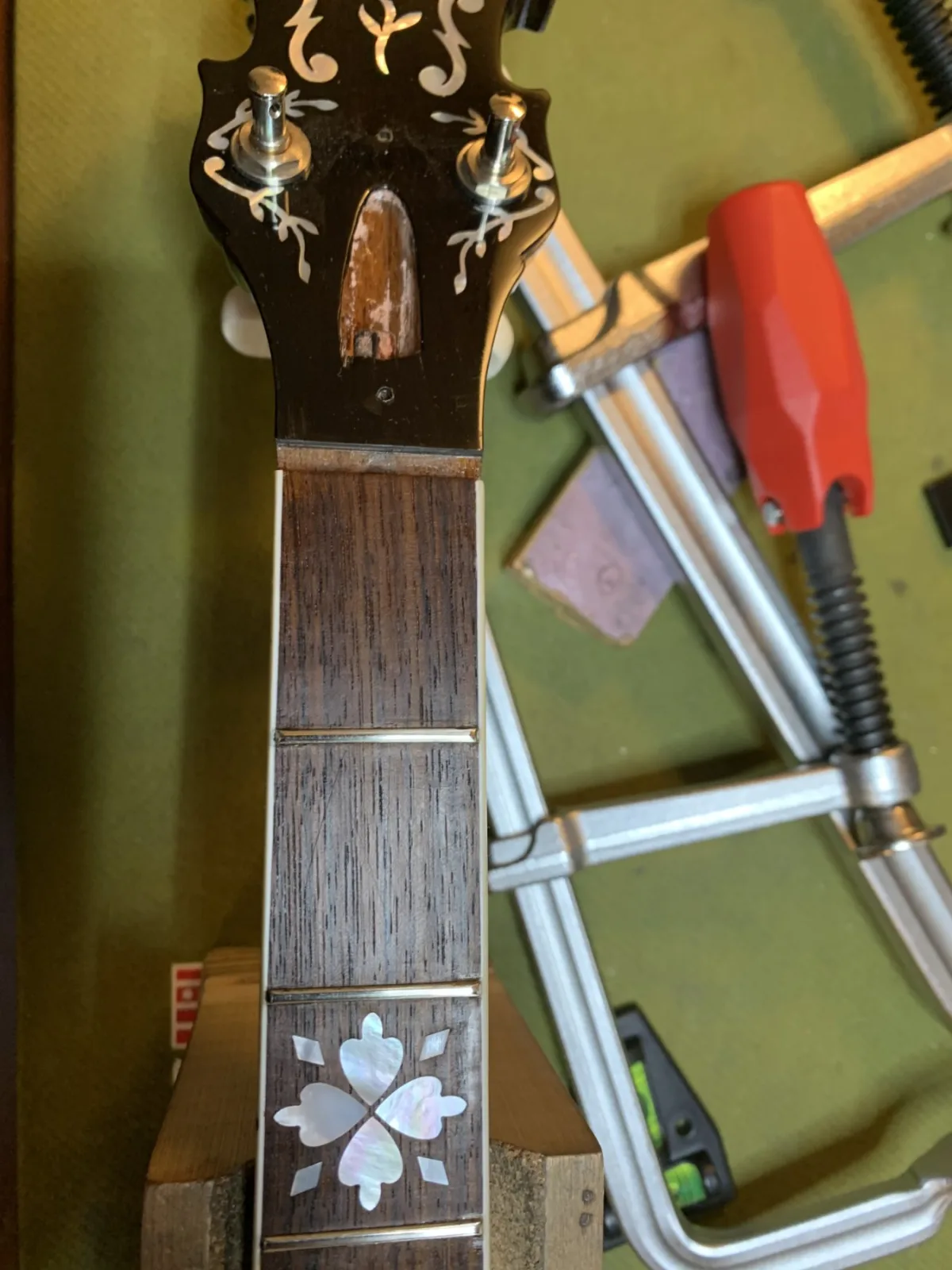

The nut slots were improperly cut and excessively deep, causing excessive buzzing in open position.

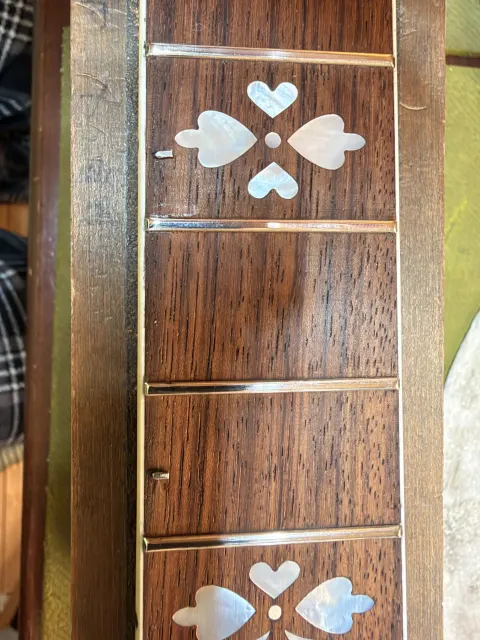

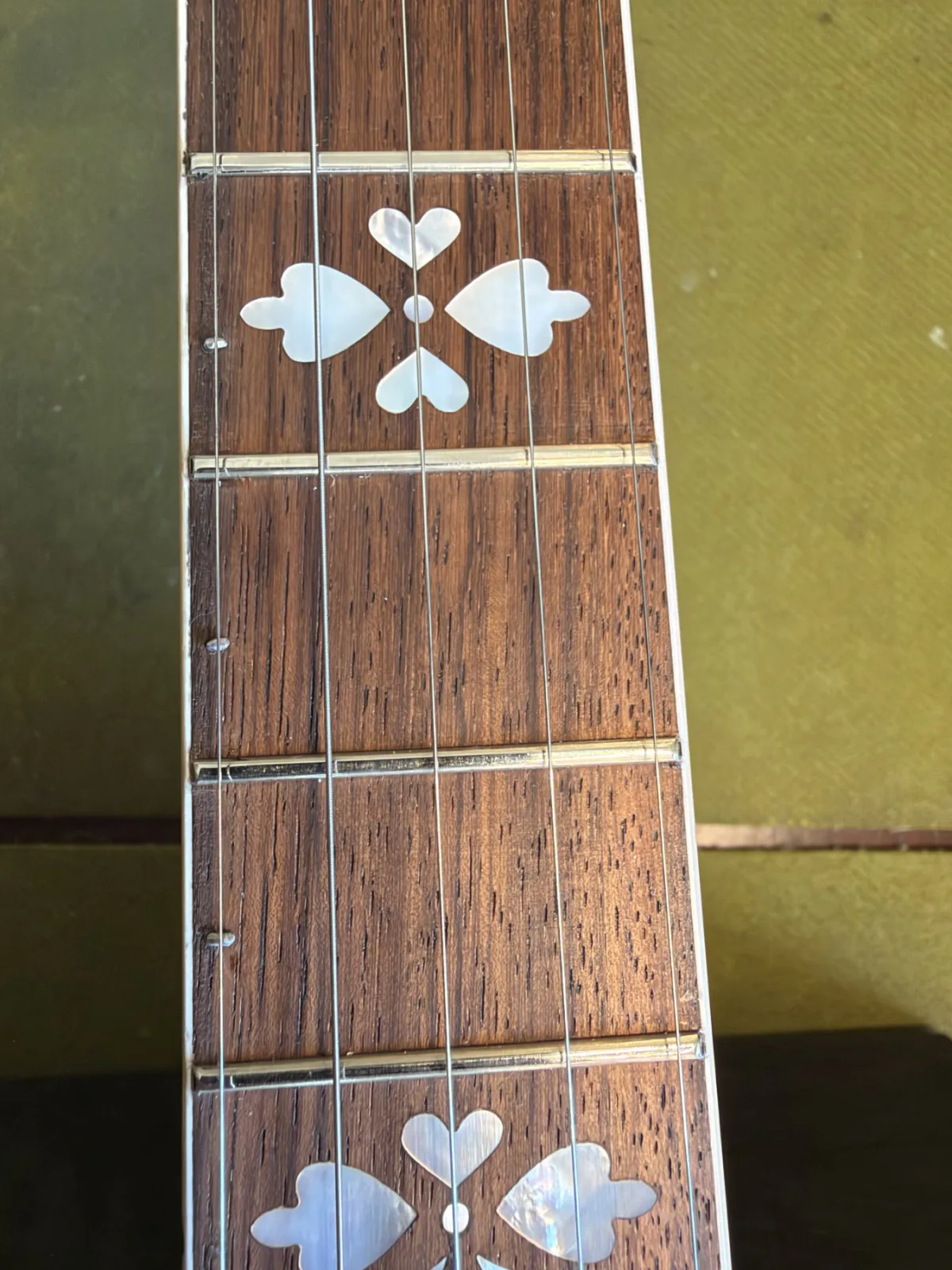

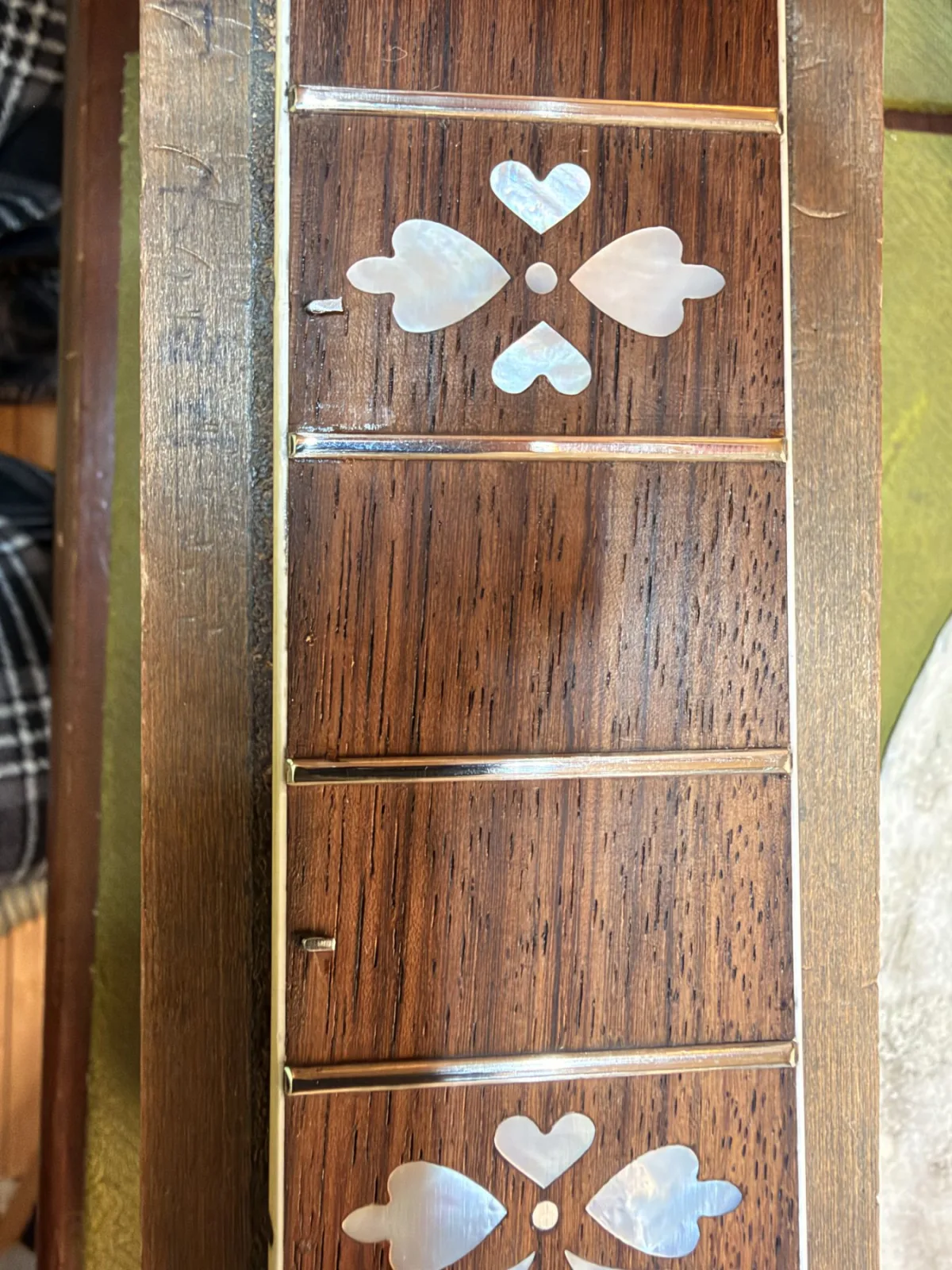

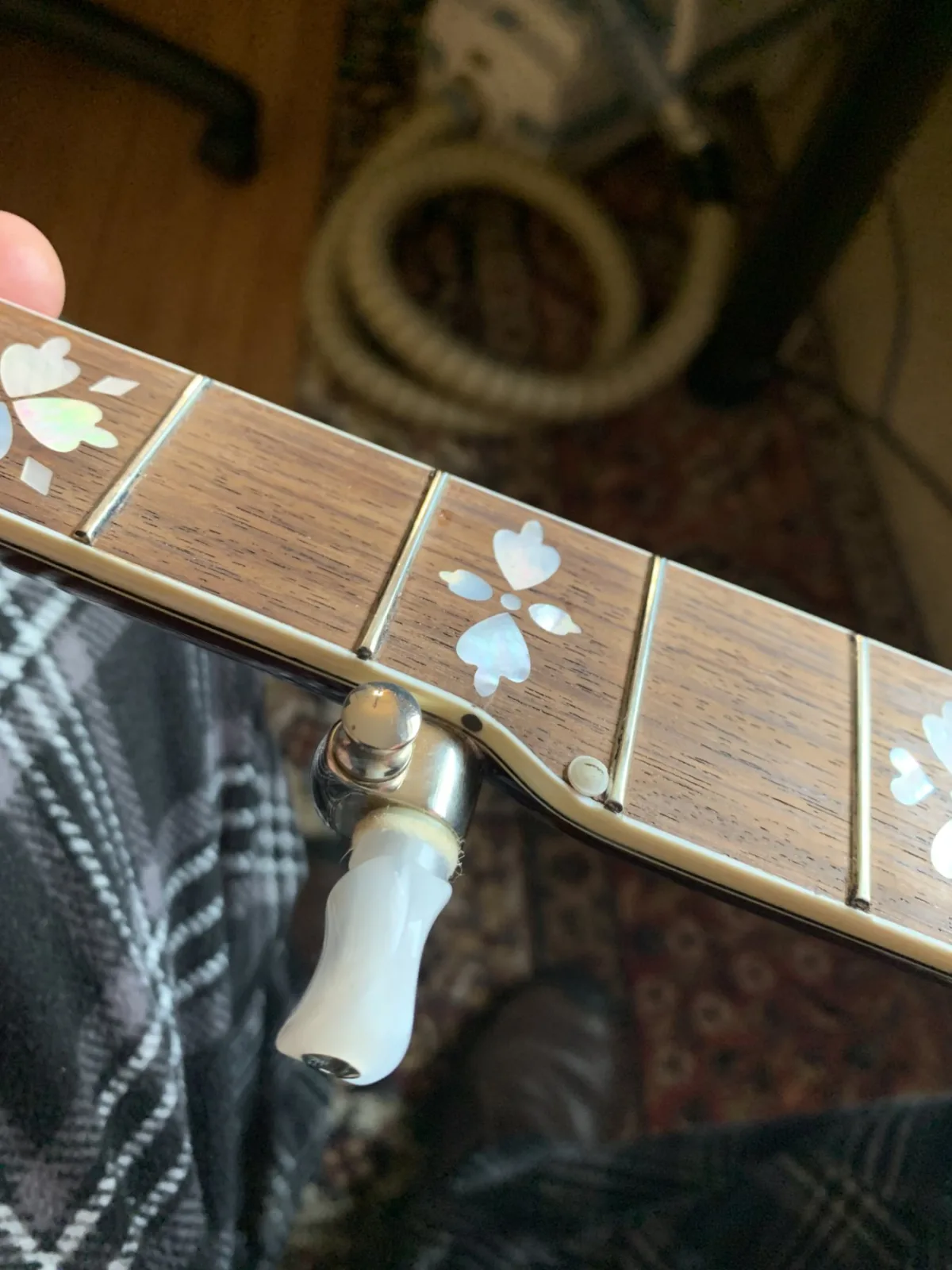

Railroad spikes were requested at A, B-flat, and B; the B-flat spike was missing, and the two installed spikes were oversized with dangerously large and sharp edges.

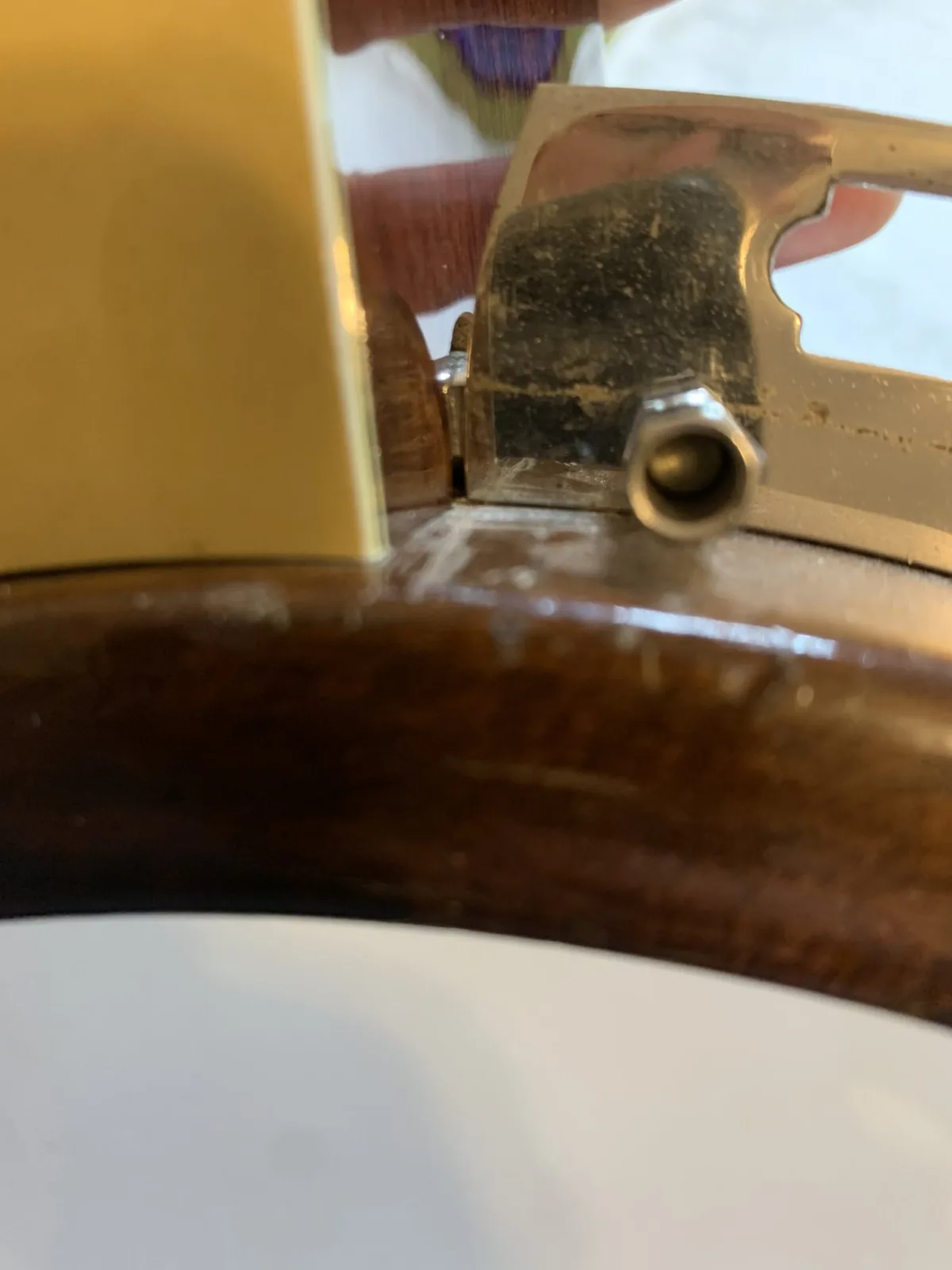

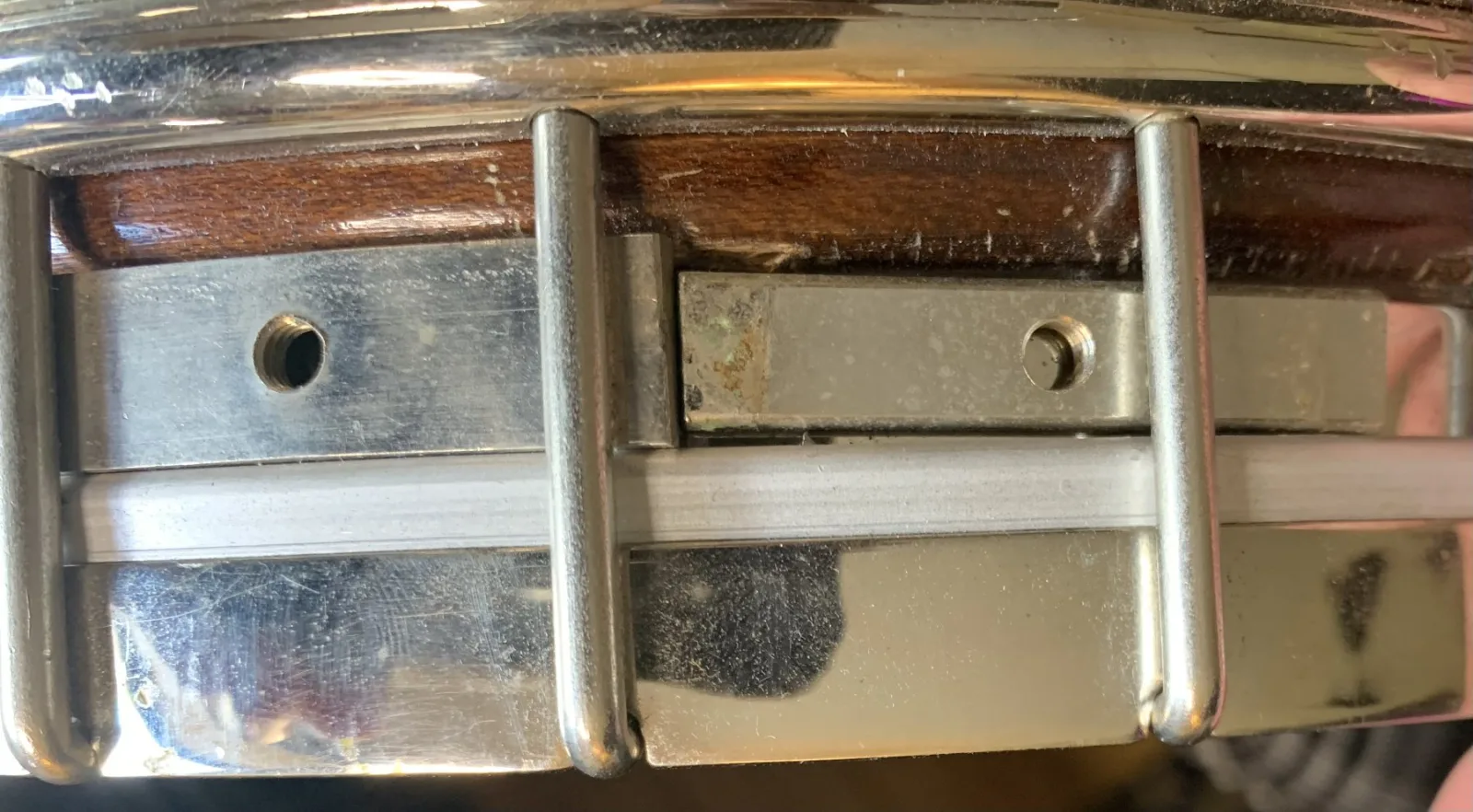

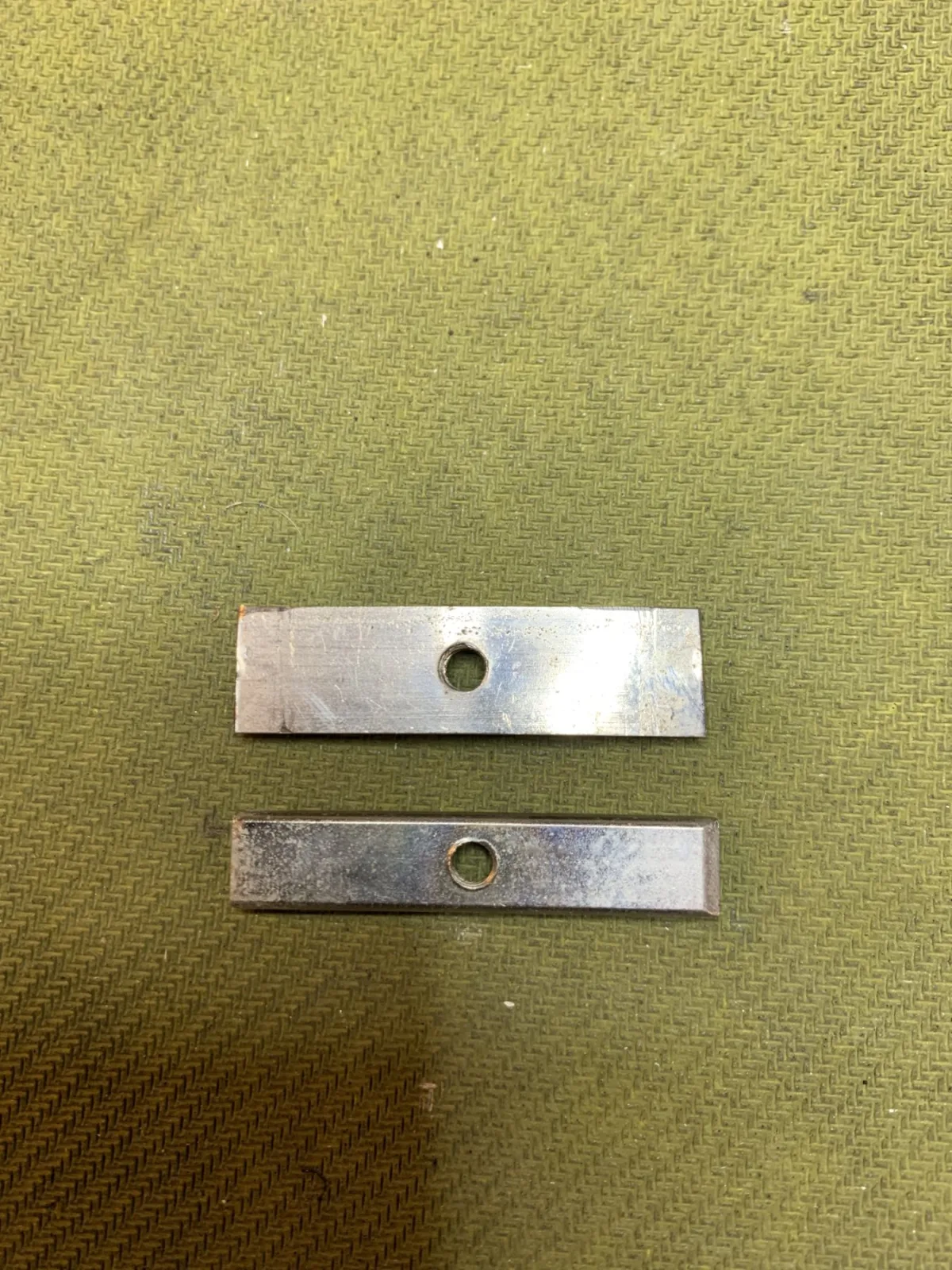

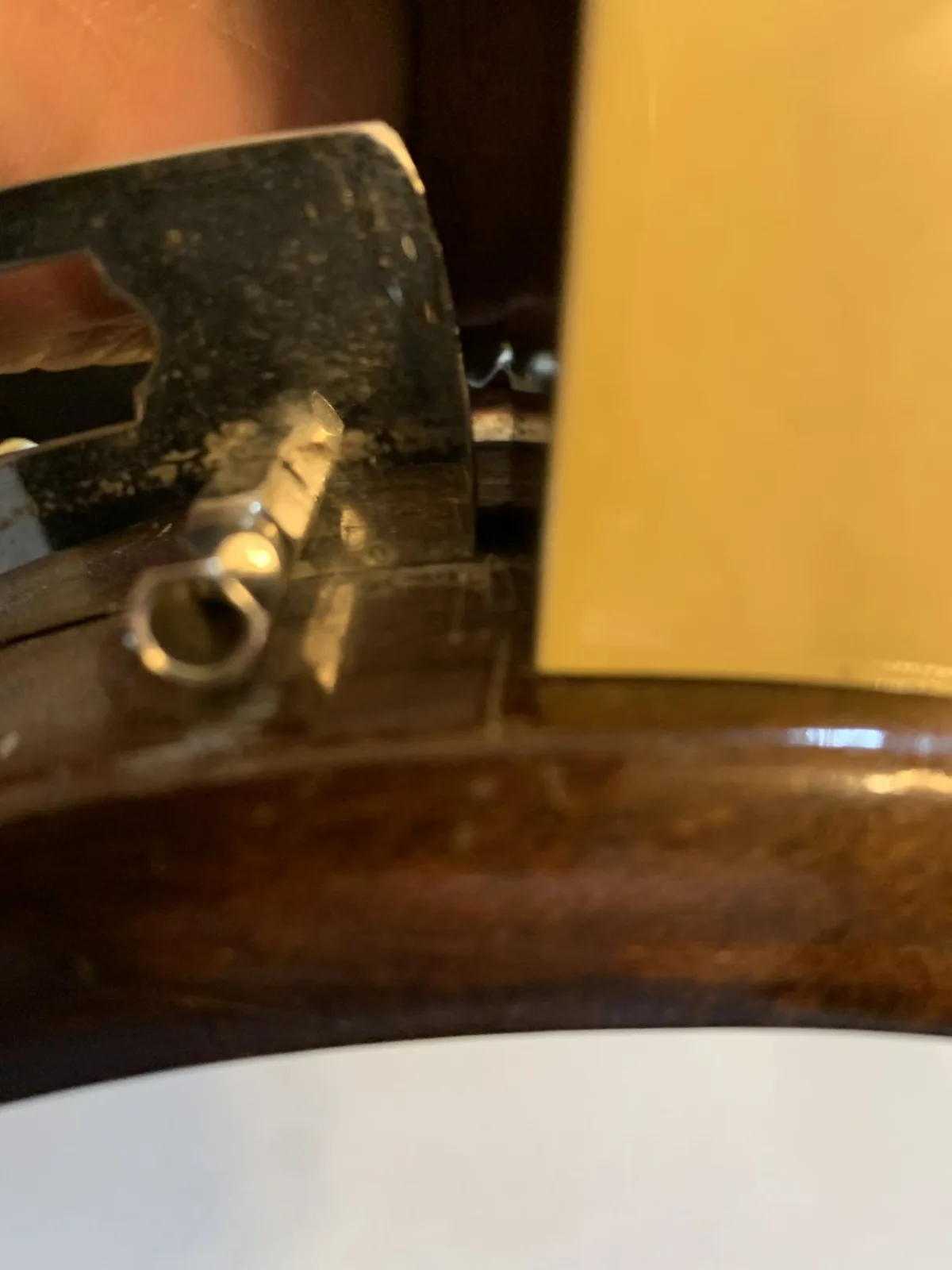

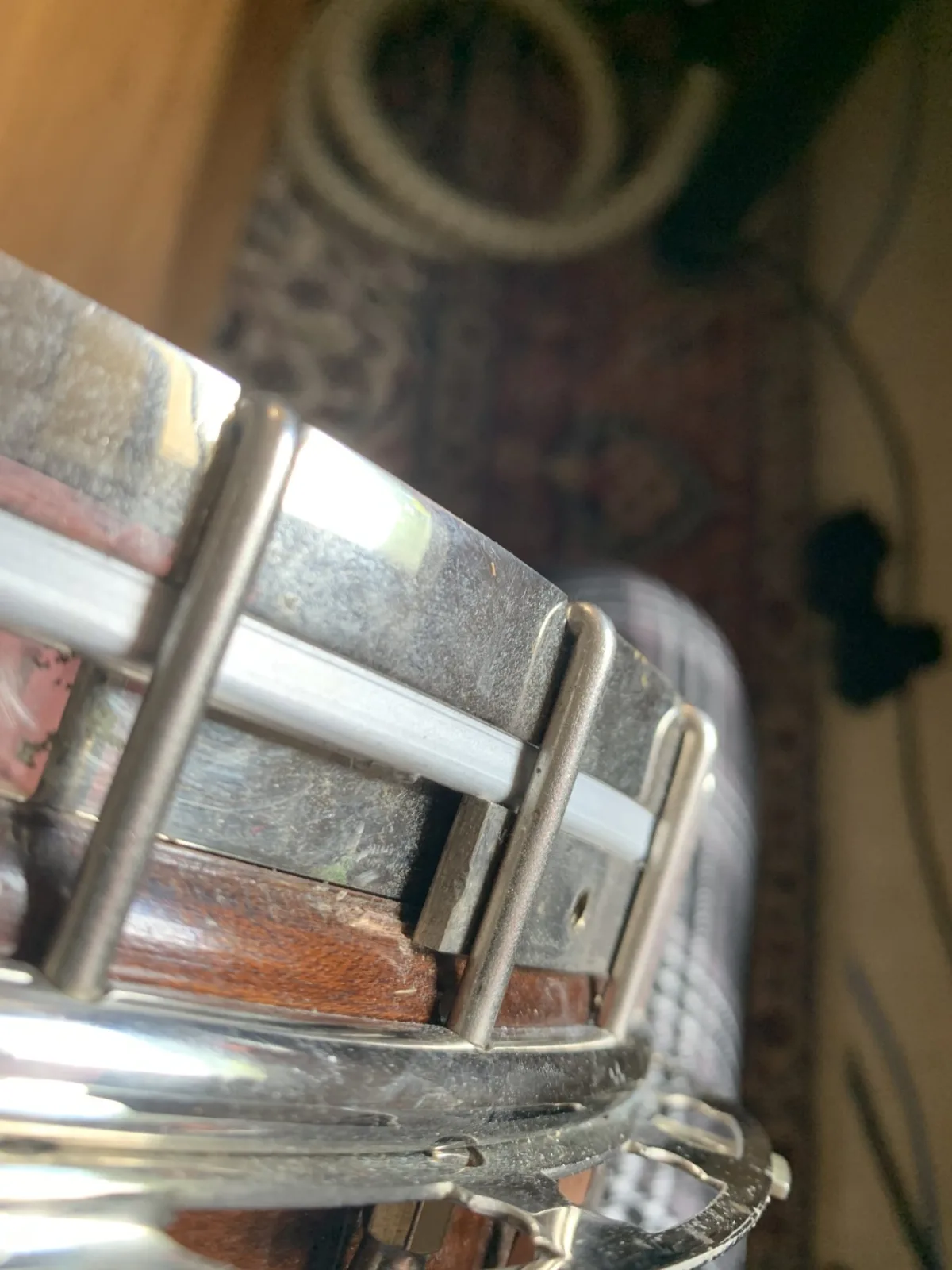

The armrest backing plate was too thick and wide for the available space between the rim and the underside of the head. Despite this, it was installed anyway. The oversized backing plate damaged the vintage rim and completely locked up the two brackets involved, making proper head tensioning impossible.

Collectively, these problems produced a tubby, unfocused tone with very little clarity, sustain, or power. The banjo was difficult to tune, would not reliably stay in tune, there was significant buzzing, both in the open position, and throughout the entire neck.

What the evaluation revealed

In its condition upon arrival at my shop, this banjo was not suitable for professional performance or serious playing. It required substantial corrective fretwork, setup, alignment, and hardware remediation before it could perform reliably and meet professional playing standards.

Before setup

Hear the Banjo Before the Work

Before work begins, tubby, weak sustain, no separation or clarity

The setup plan

Recommendations

Correct neck fit, replace the nut, pip, spikes and armrest. Correct the truss rod, correct the 5th string tuner, level, crown and polish the frets. Adjust the head tension and tune the tone chamber.

At the workbench

Work Performed

I corrected the tension hoop and neck alignment so the neck would fit the rim correctly. I made a new nut, and replaced the pip and spikes. I corrected the truss rod, and 5th string tuner installation, then leveled, crowned and polished the frets. I also adjusted and tuned the head and tone chamber to a very specific frequency to match the unique tone chamber of this 1928 no hole archtop pot, bringing this beautiful old banjo back to life.

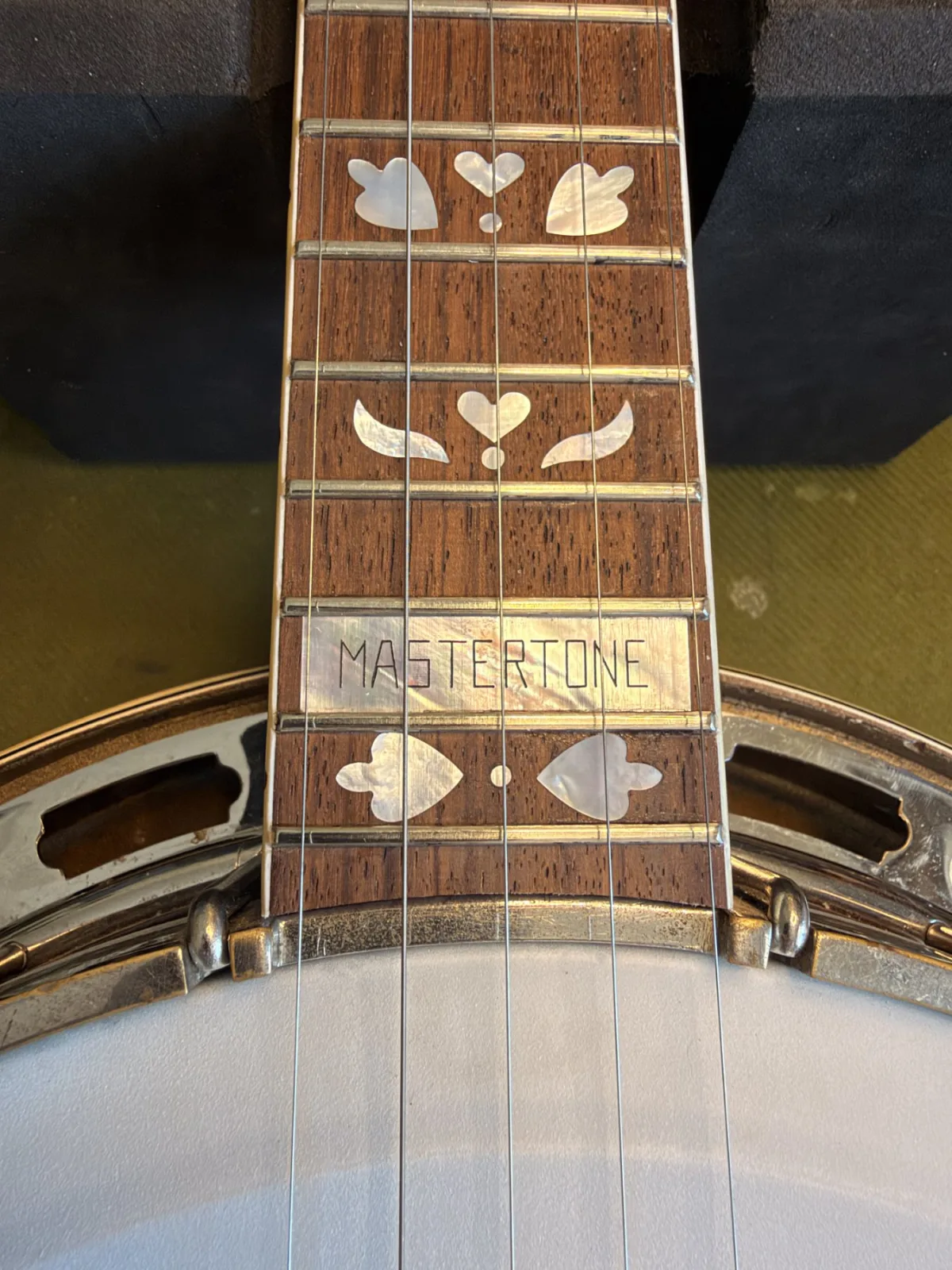

After the work

The Results

The banjo now tunes easily, and more importantly, it stays in tune. It has nice low action with great clarity, tone, power and sustain all over the neck. The 4th string now has that deep growly bass response that all serious banjo players love. Perfect intonation over the entire fretboard with no buzzing, and crystal clear and very powerful high notes.

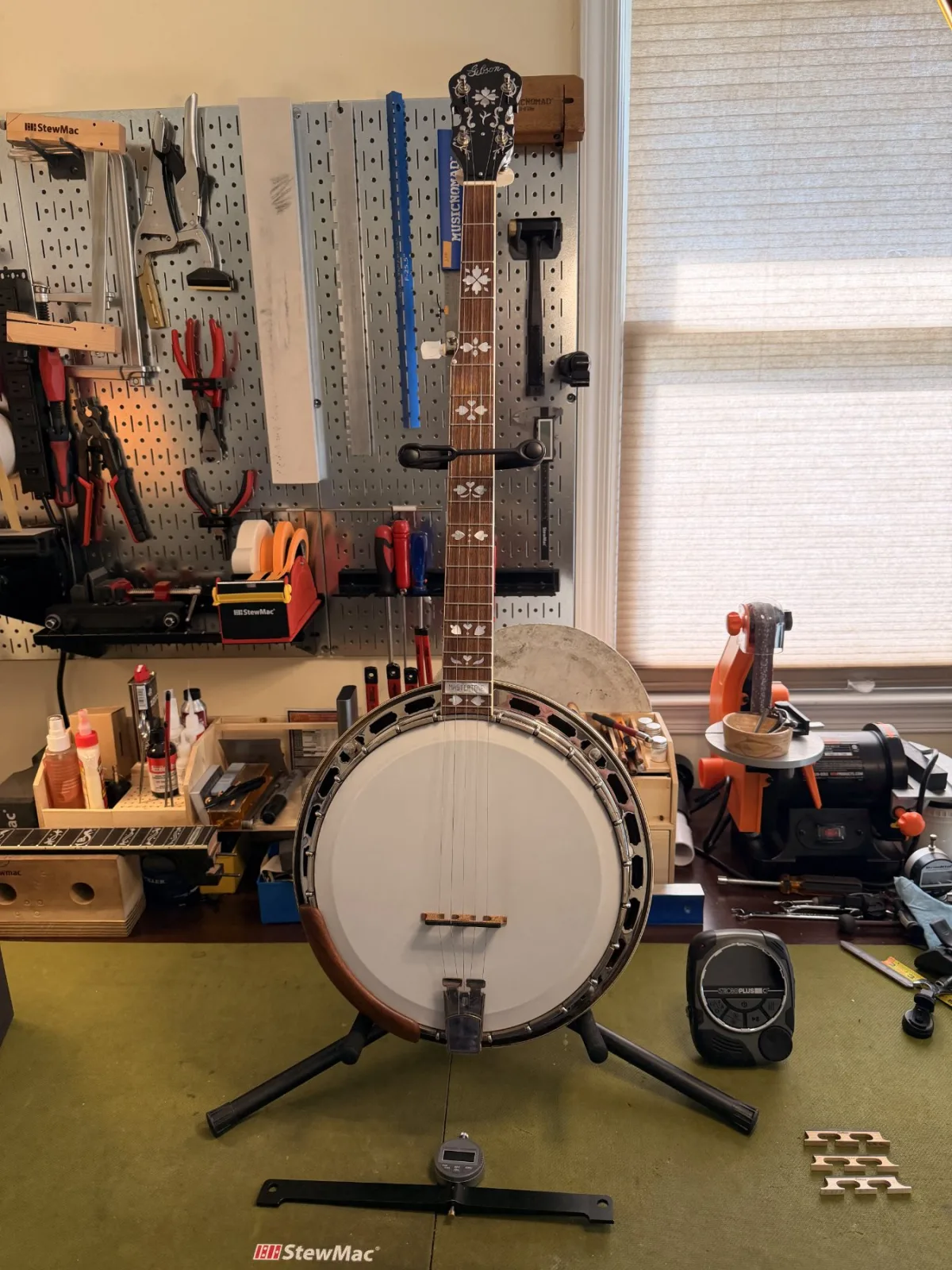

After setup
